Nvidia Bluefield-3 by numbers
Alexandre Cassen, <acassen@gmail.com> | Vincent Bernat, <vincent@bernat.ch>
Network equipment evaluation relies on repetitive and incremental testing to identify and qualify bottlenecks. The test protocol presented here was used during implementation and integrated into development iterations. Rather than implement and then test, we implemented and tested together as part of the same process to quickly validate intuitions and quickly invalidate assumptions.
Various testing and benchmarking tools are available and widely used. Each one has its own specificities and features. A clear and concrete definition of the target use case guides the decision. In our case, the goal is to run and test the solution on a wild telco operator network dealing with a bunch of traffic ranging from broadband access to mobile device user equipment. The best tool available, taking into account all our constraints, was TRex OpenSource project from Cisco Systems.
Our tests are focused and based on Nvidia networking solutions as they are now the easiest and best integrated solution for IPsec HW offload. ConnectX-7 NICs (CX7) can be used in a standard box with plenty of CPU and RAM. Rather, we chose to test the CX7 with its integration into the Nvidia Bluefield-3 (BF3) product running in DPU mode. The BF3 HW is really good and offers an integrated all-in-one box instead of integrating several high-profile components. The BF3 HW used was :
- Device Type: BlueField3
- Part Number: 900-9D3B6-00CV-A_Ax
- Description: NVIDIA BlueField-3 B3220 P-Series FHHL DPU; 200GbE (default mode) / NDR200 IB; Dual-port QSFP112; PCIe Gen5.0 x16 with x16 PCIe extension option; 16 Arm cores; 32GB on-board DDR; integrated BMC; Crypto Enabled
For perfs evaluations of security components, our testing, focus, and policy is to use and rely on standard open source auditable source code. We do not run BF3 with the standard BFB image. Instead, we run a simple buildroot image that includes the following items:
- Standard Linux Kernel from kernel.org : All tests has been done using Linux 6.14 as available in the kernel/git/leon/linux-rdma.git ipsec-fixes branch. We highly recommand using this branch while all these patches are not fully merged mainline.
- Last stable strongSwan supporting hw_offload option. At the time of writing, strongSwan version 6.0.0 is a good choice.
- fastSwan: available on fastSwan GitHub's repo.
This work has been done in close collaboration with Nvidia R&D Kernel Team. (Leon: if you are reading these lines: Thank you for your quick support throughout all this process.)
TRex benchmark setup
We will not describe TRex in detail, please refer to TRex website for more information and detailed features available. Basically, TRex is a traffic generator, sending traffic from one network interface and receiving the same traffic on another. Then TRex analyzes delta consolidated KPI information (drops, latency, loss, ...) between the sent and received traffic. In a standard TRex setup, a DUT (Device Under Test) is stressed under traffic pressure. In our IPsec use case, we define the TRex DUT as a set of 2 Nvidia BF3 nodes. Each BF3 node receives unencrypted traffic on its P1 port and encapsulates encrypted traffic on its P0 port. This setup provides a single data-path for both cipher & uncipher operations. The blue arrows in the following figure illustrate traffic generation:
Building a DUT with 2 BF3s in back-to-back mode is a worst case for benchmarking because the HW limits are hit twice on the data path. This setup is a performance limit amplifier. As a realistic traffic generator, TRex supports multiple streams with different profiles. We build an Internet MIX table (iMIX) to model traffic patterns as observed in production patterns and build TRex streams from it. The final TRex feature is a traffic amplifier, which gradually increases the traffic to stress test the DUT.
Network LAB setup

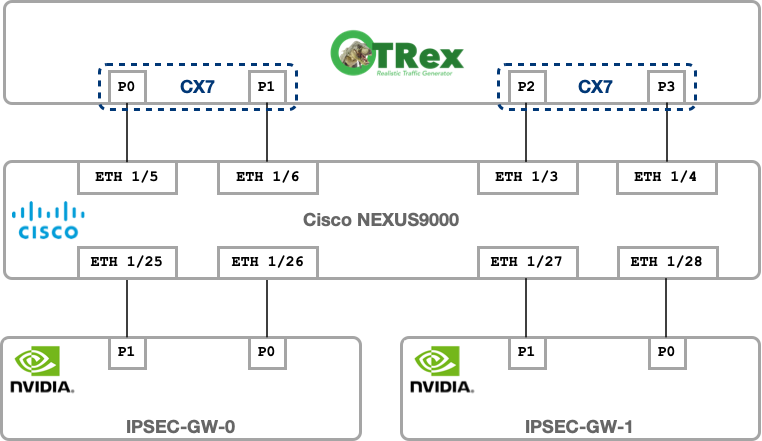

The following topology is used for all benchmarks :
TRex node is running CX7 100Gbps NICs
iMIX tables
To rely on realistic traffic pattern, live mobile network has been analyzed to create following iMIX table. These iMIX tables will be used in all our test scenarios :
| Packet Size | pps |
|---|---|
| 114 | 27991 |
| 200 | 5841 |
| 491 | 1807 |
| 1000 | 2488 |
| 1428 | 6039 |
| Packet Size | pps |
|---|---|
| 120 | 16960 |
| 218 | 9161 |
| 438 | 2960 |
| 1075 | 5619 |
| 1398 | 56458 |
| Packet Size | pps |
|---|---|
| 113 | 14171 |
| 208 | 3255 |
| 477 | 1135 |
| 994 | 2190 |
| 1417 | 4741 |
| Packet Size | pps |
|---|---|
| 112 | 7703 |
| 221 | 3320 |
| 437 | 1527 |
| 1034 | 3055 |
| 1367 | 55815 |
TRex runner
TRex traffic amplifiers (multipliers) use a linear scale traffic factor to incrementally increase traffic. We have extended this concept to support steps in traffic amplification. Steps provide fine-grained threshold detection. In all of our tests, we will use 20 steps, where each step amplifies traffic every 10 seconds, so each time we run a test, we have to wait 200s for it to complete.
Trex provides a client interface via its STL API. We have created a tool, called 'TRex runner', based on the TRex STL API to run tests and generate graphs as output results. This tool supports traffic profile templating.
You can find trex-runner on its GitHub repo.
TRex is configured and run using Layer3 flavor on a AMD EPYC 7452 32-Core Processor box :
- version: 2
c: 15
interfaces:
- '81:00.0'
- '81:00.1'
- '41:00.0'
- '41:00.1'
port_info:
- ip: 10.0.0.1
default_gw: 10.0.0.254
- ip: 11.0.0.1
default_gw: 11.0.0.254
- ip: 10.1.0.1
default_gw: 10.1.0.254
- ip: 11.1.0.1
default_gw: 11.1.0.254
platform:
master_thread_id: 0
latency_thread_id: 31
dual_if:
- socket: 0
threads: [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15]
- socket: 0
threads: [16,17,18,19,20,21,22,23,24,25,26,27,28,29,30]
strongSwan conf template
On each BF3, strongSwan will be used in tunnel mode with a simple PSK configuration as follow :
connections {
BF-TO-BF {
local_addrs = 192.168.101.1
remote_addrs = 192.168.101.2
local {
auth = psk
id = bf-ipsecgw-0
}
remote {
auth = psk
id = bf-ipsecgw-1
}
children {
bf {
local_ts = 16.0.0.0/8
remote_ts = 48.0.0.0/8
esp_proposals = aes256gcm128-esn
mode = tunnel
policies_fwd_out = yes
hw_offload = packet
}
}
version = 2
mobike = no
reauth_time = 0
proposals = aes256-sha256-modp2048
}
}
secrets {
ike-BF {
id-1 = bf-ipsecgw-0
id-2 = bf-ipsecgw-1
secret = 'TopSecret'
}
}
Test 0 - Linux Kernel
The purpose of this test is to evaluate standard Linux IPsec performaces has it comes out of the box using BF3 with and without HW offload. This test will not use any fastSwan eBPF/XDP acceleration.

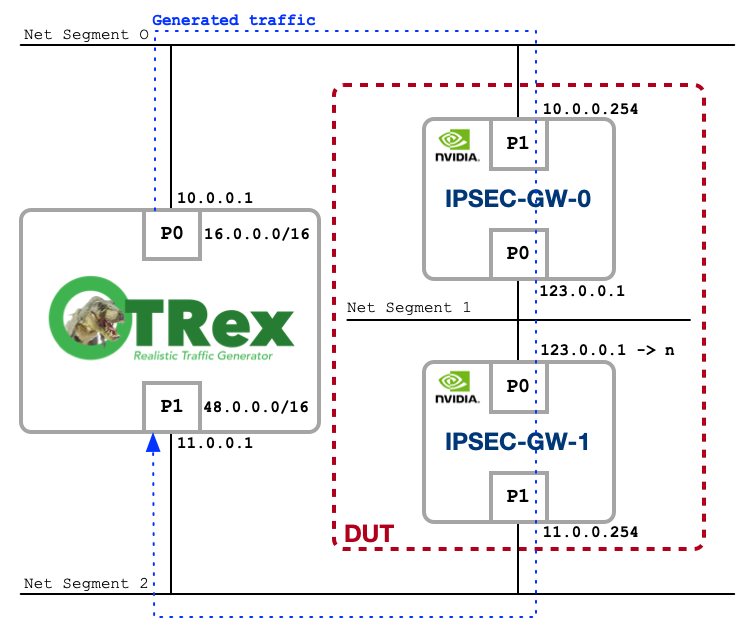

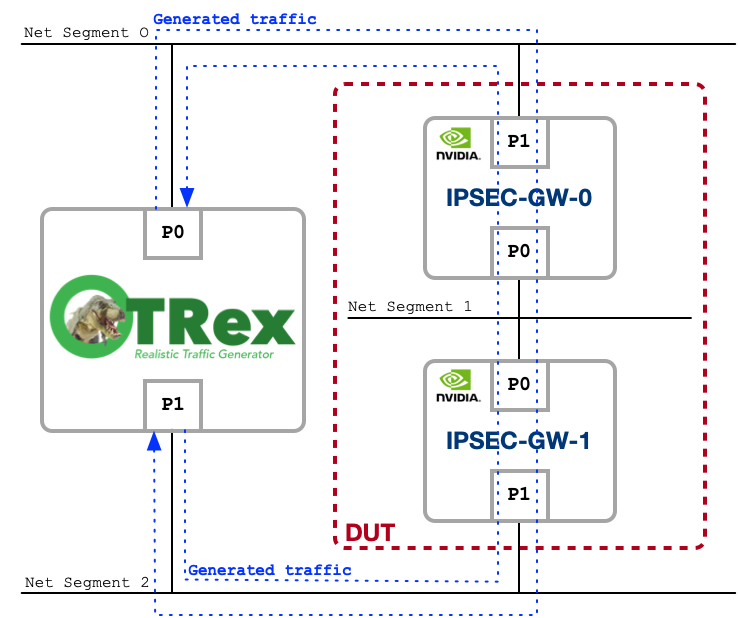

LAB topology
This test will use uni-directional routing path where packets are transmited to TRex P0, sent to DUT and then received on TRex P1. This test evaluate a single IPsec routing path which display accurate limit. We defined our DUT by exposing IPsec features back-to-back (TX on IPSEC-GW-0/P0 & RX on IPSEC-GW-1/P1) :
IPsec Tunnels will be established on P0 port between both IPSEC-GW. Subnet 123.0.0.0/16 will be used to setup tunnel endpoints.
Configurations
On each IPSEC-GW a script will generate routing and strongSwan configurations :
#!/bin/bash
TNLCOUNT=<TNLCNT>
#
# Networking setup
#
sysctl -w net.ipv4.ip_forward=1
ip link set p0 up
ip a a 123.0.0.1/16 dev p0
ip link set p1 up
ip a a 10.0.0.254/24 dev p1
ip r a 16.0.0.0/8 via 10.0.0.1
ip link set dev dummy0 up
ip a a 10.10.10.10/32 dev dummy0
ip r a default via 10.10.10.10
#
# strongSwan initiate
#
ipsec start
sleep 1
swanctl --load-all
for i in `seq 1 $TNLCOUNT`;
do
swanctl -i --child tnl$i
done
#!/bin/bash
if [ "$#" -ne 1 ]; then
echo " "$(basename $0)" <tnlcount>"
echo " tnlcount: NUMBER "
echo " "
echo " Generate strongSwan configuration files."
exit
fi
TNLCOUNT=$1
SUBNET_CONNECTED="123.0"
SUBNET_ROUTED_LOCAL="16"
SUBNET_ROUTED_REMOTE="48"
BITS="24"
OUTPUT="s0-$TNLCOUNT.conf"
if [ $TNLCOUNT -gt $((255 * 255)) ]; then
echo "Maximum tunnel supported : $((255 * 255))"
exit
fi
cat << HEADER > "$OUTPUT"
connections {
HEADER
for i in `seq 1 $TNLCOUNT`
do
cat << TNL >> "$OUTPUT"
tunnel$i {
local_addrs = ${SUBNET_CONNECTED}.0.1
remote_addrs = ${SUBNET_CONNECTED}.$((i / 255)).$((i % 255 + 1))
local {
auth = psk
id = ipsecgw-0
}
remote {
auth = psk
id = ipsecgw-$i
}
children {
tnl$i {
local_ts = ${SUBNET_ROUTED_LOCAL}.0.0.0/8
remote_ts = ${SUBNET_ROUTED_REMOTE}.$(((i-1) / 255)).$(((i-1) % 255)).0/${BITS}
esp_proposals = aes256gcm128-esn
mode = tunnel
policies_fwd_out = yes
hw_offload = packet
}
}
version = 2
mobike = no
reauth_time = 0
proposals = aes256-sha256-modp2048
}
TNL
done
cat << FOOTER >> "$OUTPUT"
}
secrets {
FOOTER
for i in `seq 1 $TNLCOUNT`
do
cat << SECRET >> "$OUTPUT"
ike-tnl$i {
id-1 = ipsecgw-0
id-2 = ipsecgw-$i
secret = 'TopSecret'
}
SECRET
done
echo "}" >> "$OUTPUT"
#!/bin/bash
TNLCOUNT=<TNLCNT>
#
# Networking setup
#
sysctl -w net.ipv4.ip_forward=1
ip link set p0 up
for i in `seq 1 $TNLCOUNT`;
do
ip a a 123.0.$((i / 255)).$((i % 255 + 1))/16 dev p0
done
ip link set p1 up
ip a a 11.0.0.254/24 dev p1
ip r a 48.0.0.0/8 via 11.0.0.1
ip link set dev dummy0 up
ip a a 10.10.10.10/32 dev dummy0
ip r a default via 10.10.10.10
#
# strongSwan initiate
#
ipsec start
sleep 1
swanctl --load-all
#!/bin/bash
#
# 120K Clients considered : adapt BITS to distribute load across
# 24 : 254
# 25 : 126
# ....
if [ "$#" -ne 1 ]; then
echo " "$(basename $0)" <tnlcount>"
echo " tnlcount: NUMBER "
echo " "
echo " Generate strongSwan configuration files."
exit
fi
TNLCOUNT=$1
SUBNET_CONNECTED="123.0"
SUBNET_ROUTED_LOCAL="48"
SUBNET_ROUTED_REMOTE="16"
BITS="24"
OUTPUT="s1-$TNLCOUNT.conf"
if [ $TNLCOUNT -gt $((255 * 255)) ]; then
echo "Maximum tunnel supported : $((255 * 255))"
exit
fi
cat << HEADER > "$OUTPUT"
connections {
HEADER
for i in `seq 1 $TNLCOUNT`
do
cat << TNL >> "$OUTPUT"
tunnel$i {
remote_addrs = ${SUBNET_CONNECTED}.0.1
local_addrs = ${SUBNET_CONNECTED}.$((i / 255)).$((i % 255 + 1))
local {
auth = psk
id = ipsecgw-$i
}
remote {
auth = psk
id = ipsecgw-0
}
children {
tnl$i {
local_ts = ${SUBNET_ROUTED_LOCAL}.$(((i-1) / 255)).$(((i-1) % 255)).0/${BITS}
remote_ts = ${SUBNET_ROUTED_REMOTE}.0.0.0/8
esp_proposals = aes256gcm128-esn
mode = tunnel
policies_fwd_out = yes
hw_offload = packet
}
}
version = 2
mobike = no
reauth_time = 0
proposals = aes256-sha256-modp2048
}
TNL
done
cat << FOOTER >> "$OUTPUT"
}
secrets {
FOOTER
for i in `seq 1 $TNLCOUNT`
do
cat << SECRET >> "$OUTPUT"
ike-tnl$i {
id-1 = ipsecgw-$i
id-2 = ipsecgw-0
secret = 'TopSecret'
}
SECRET
done
echo "}" >> "$OUTPUT"

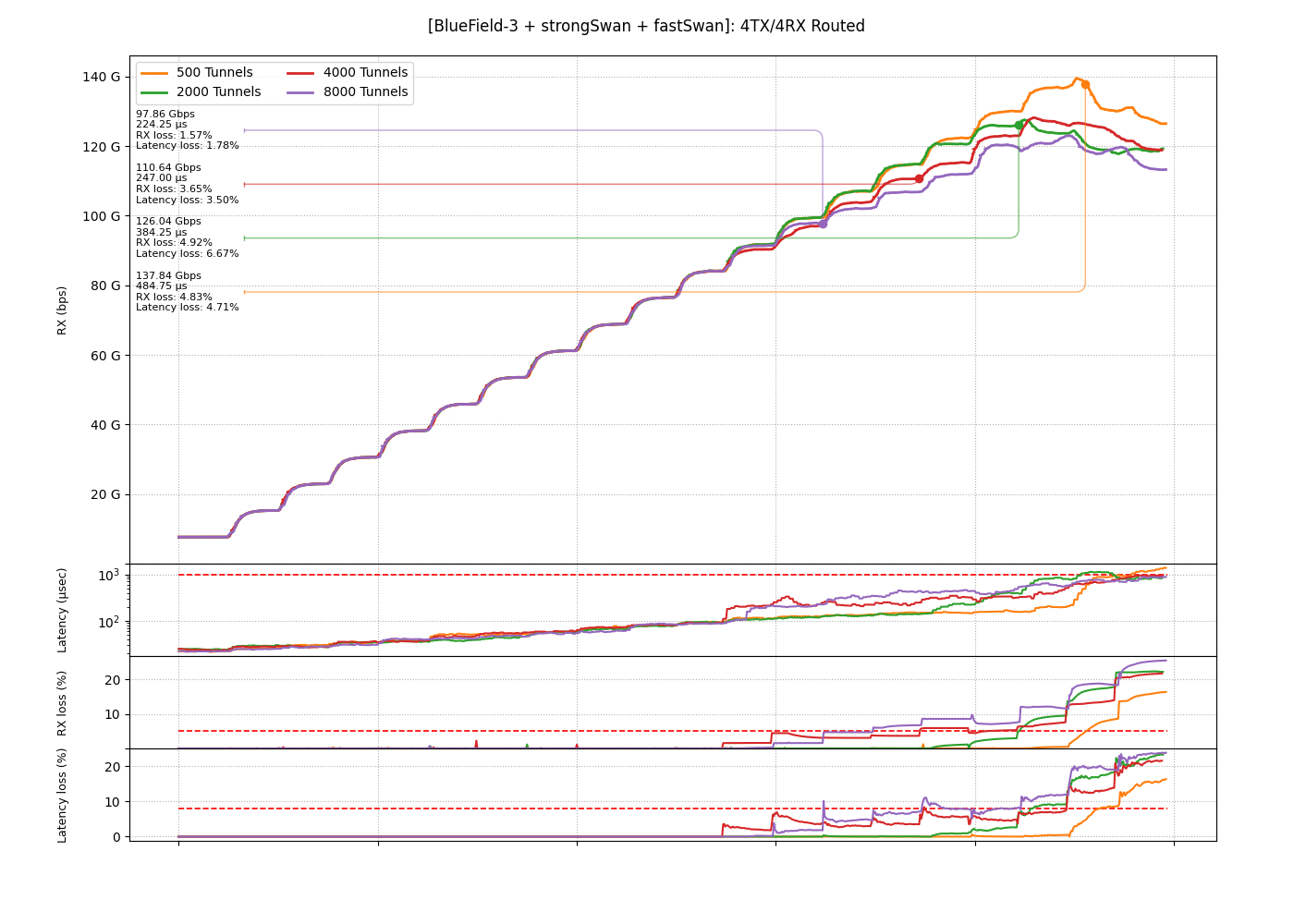

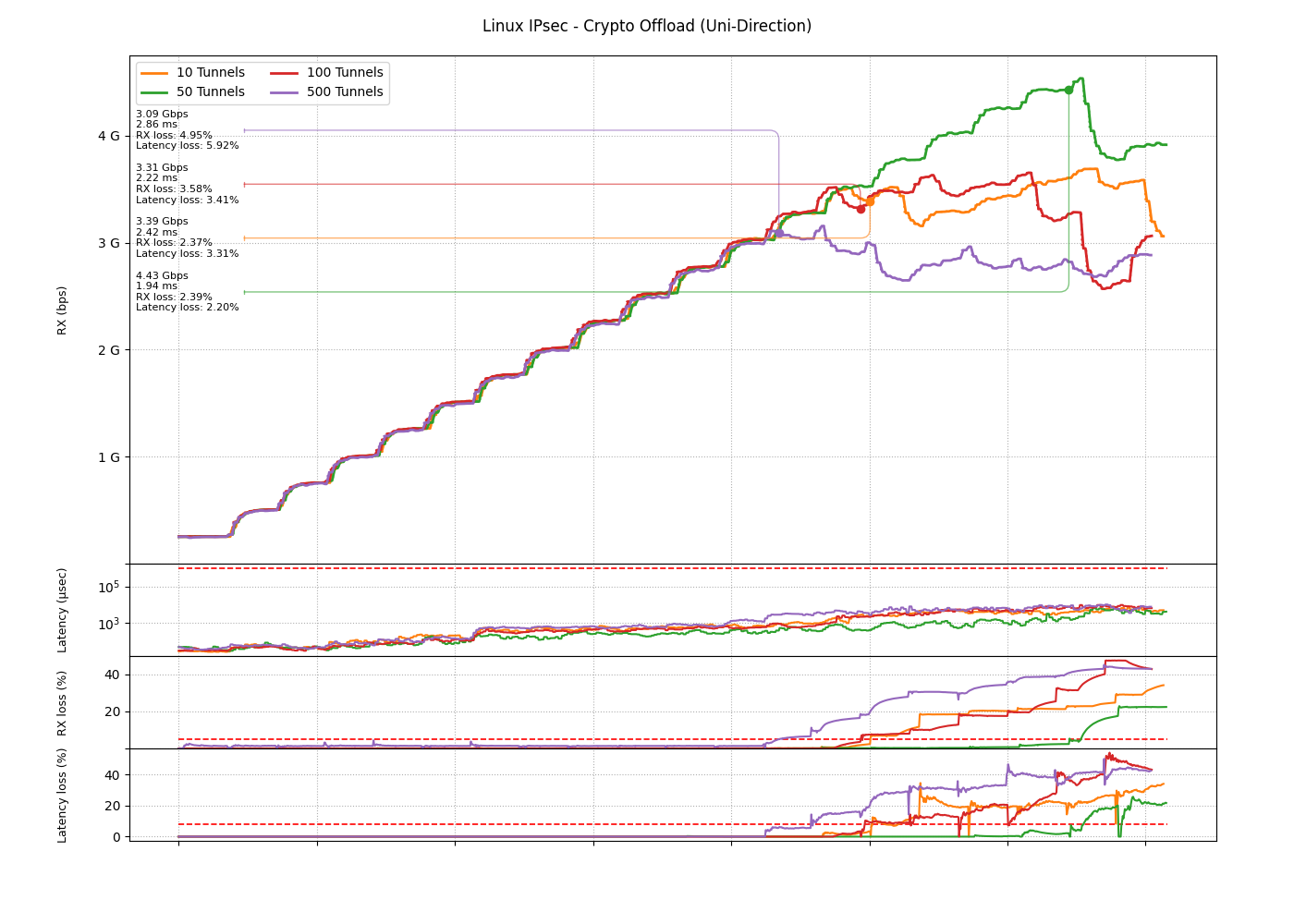

Results
Discussion

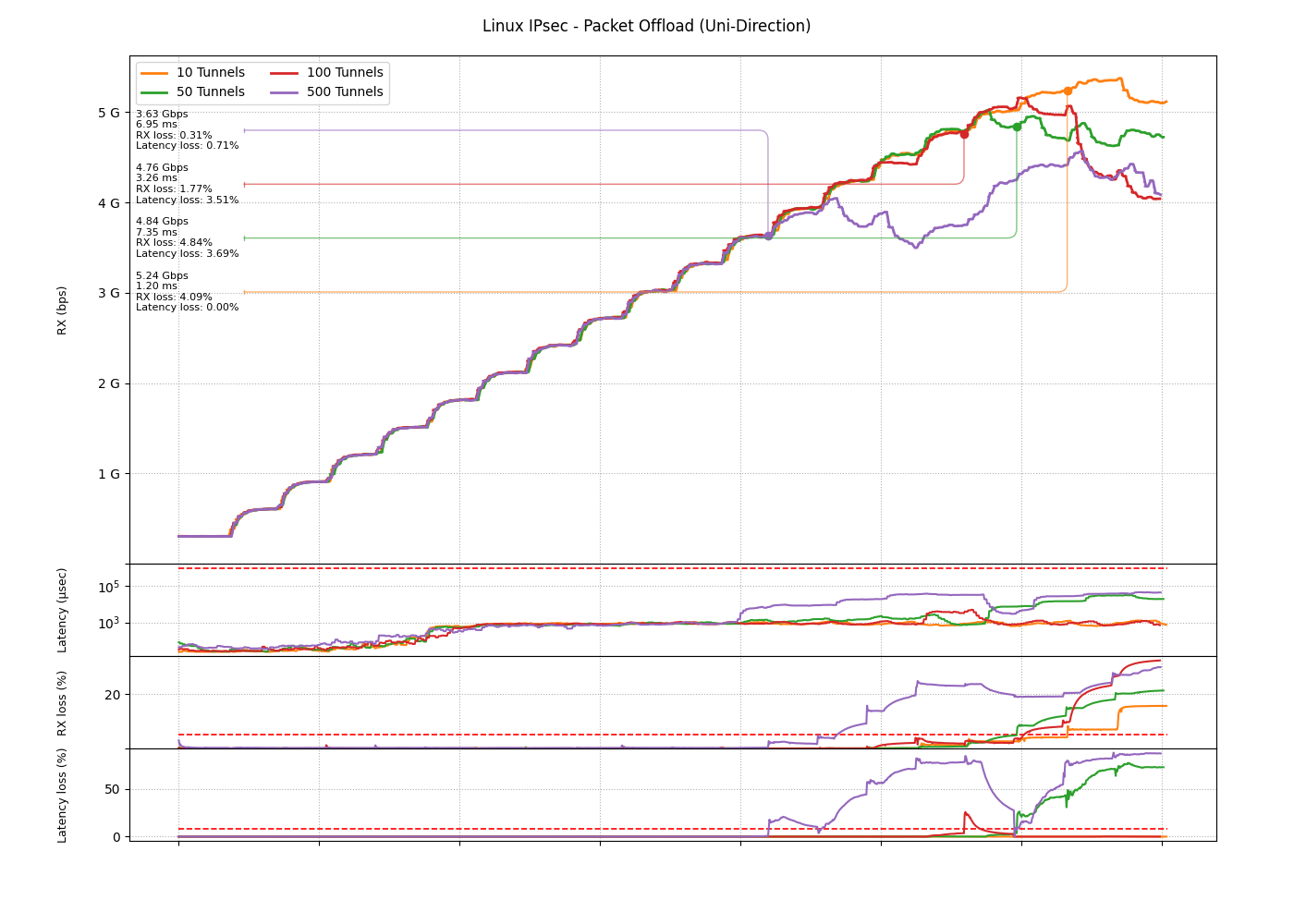

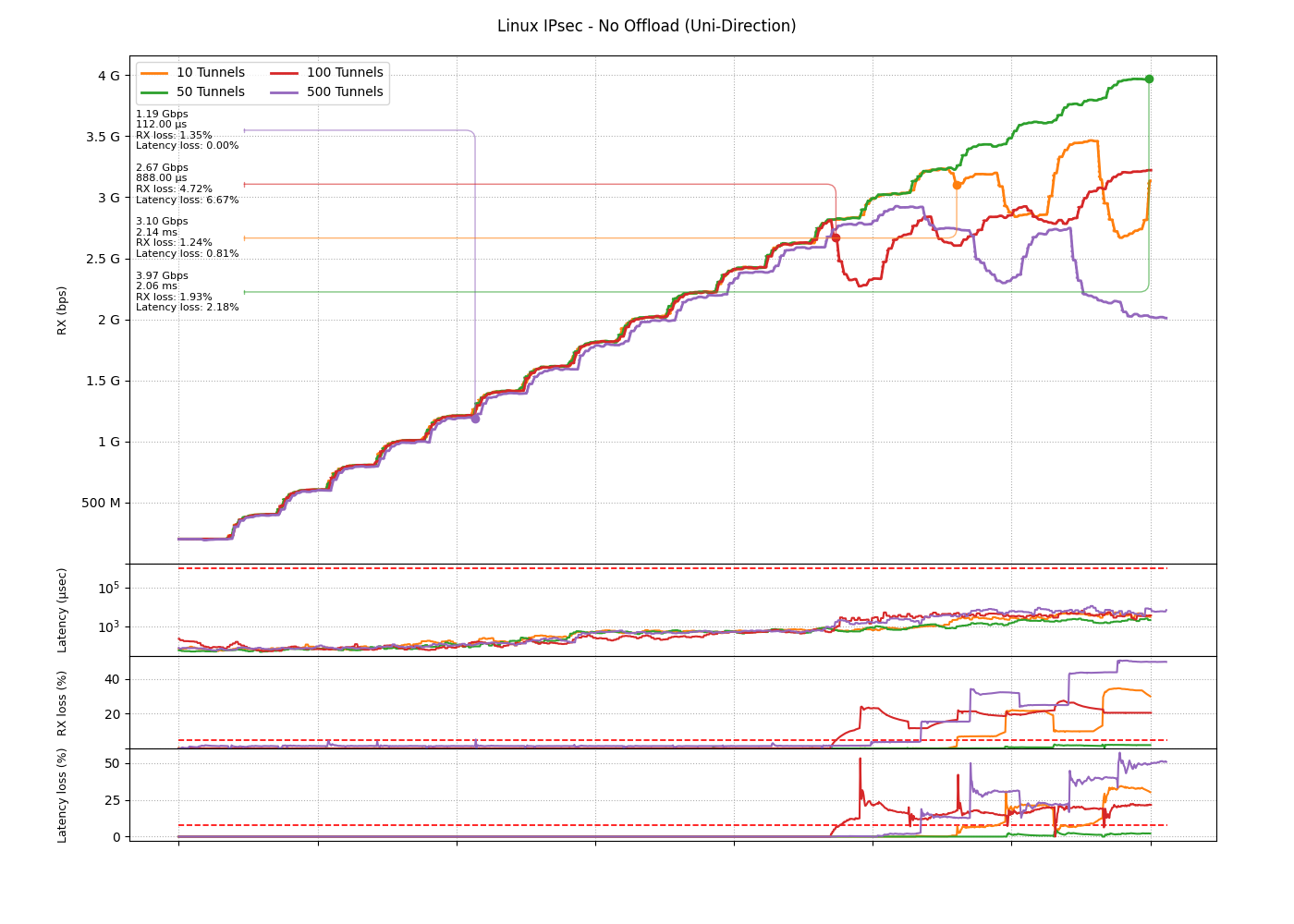

Graphs above refer to specific Linux Kernel IPsec operations :
- No Offload: Linux Kernel XFRM layer will handle packet ciphering and packet encapsulation.
- Crypto Offload: Linux Kernel XFRM layer will only handle packet encapsulation, ciphering operations avec offloaded to BF3.
- Packet Offload: Both packet ciphering and encapsulation are offloaded to BF3.
Packet Offload is the most advanced Offload mode and we could expect a more important performances gap between 2 others mode. The reason for that is that packets are received on port P0 and sent to port P1, which means that we are relying on Linux Kernel forwarding path to route packet in the network stack. In Packet Offload for Tunnel mode, XFRM layer is sending packets directly to netdevice withtout the need to recirculate packet inside netstack.
We can observe that traffic generated in 50 Tunnels outperforms traffic generated in 10 Tunnels. This is only observed in No Offload and Crypto Offload mode. This sounds weird, and re-tested 3 times, probably something to investigate at XFRM output since we dont have this behaviour in Packet Offload mode where a direct netdevice output take place.
The number of Tunnels is directly impacting performances with more latency impact in No Offload mode.
Test 1 - fastSwan XDP
The purpose of this test is to evaluate the fastSwan eBPF/XDP feature set and its impact on data-path performance. This test uses the same LAB configuration as the one of Test 0 where 500 IPsec Tunnels are used. Test 0 is completed by a bi-directional test.
fastSwan eBPF/XDP program uses BPF LPM matching, FIB lookup and packet redirection. We are testing incremental features addition.
All testing is done in Packet Offload mode as this is our production target.

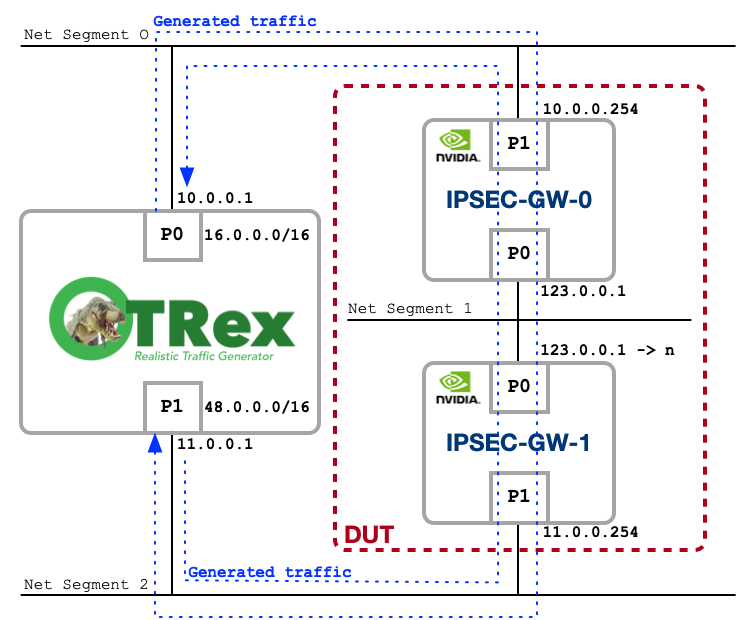

LAB Topology
Same as Test 0, but adding a second path for bi-directional test.
Configurations
Same as Test 0
Results
Discussion

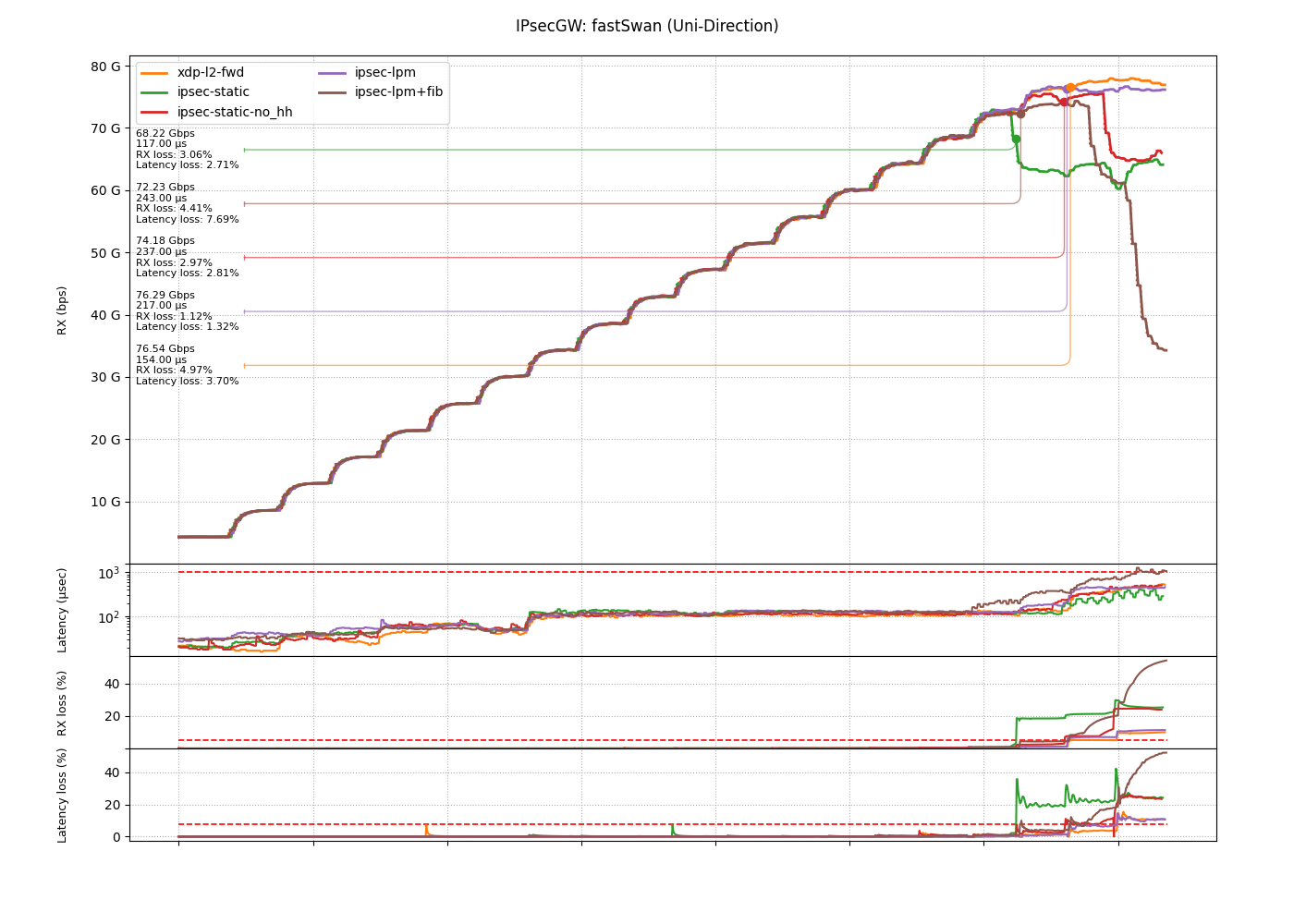

Graph above refers to fastSwan eBPF/XDP split features:
-
xdp-l2-fwd: Without any IPsec into the picture, just a pure and basic Layer2 forwarding between PO & P1 where eBPF program is simply rewriting ethernet header and redirecting packet to NIC. This is our reference for maximum throughput.
-
ipsec-static: Same as xdp-l2-fwd but with traffic IPsec traffic.
-
ipsec-static-no_hh: In Packet offload, each IPsec tunnels are initialized with Layer2 MAC addresses. This is same as ipsec-static but without setting MAC addresses for traffic redirected into IPsec tunnels.
-
ipsec-lpm: Adding XFRM policy matching via BPF LPM to ipsec-static-no_hh.
-
ipsec-lpm+fib: Adding BPF FIB lookup to ipsec-lpm. Ethernet header for packets not related to IPsec tunnels endpoint are built with BPF FIB lookup.
There is less performances if we are building ethernet header in all cases. For packet redirected to IPsec interfaces simply skip ethernet header setup in eBPF program.
Every feature used came at a cost, but considering the traffic pattern, the differences between each BPF atomic features are quite negligible... Which is really impressive !!! Same consideration on latency front.
Globally, a 4Gbps impact is observed using the full BPF feature set, which is a global penalty of about 5.6%. This is acceptable considering the global numbers.

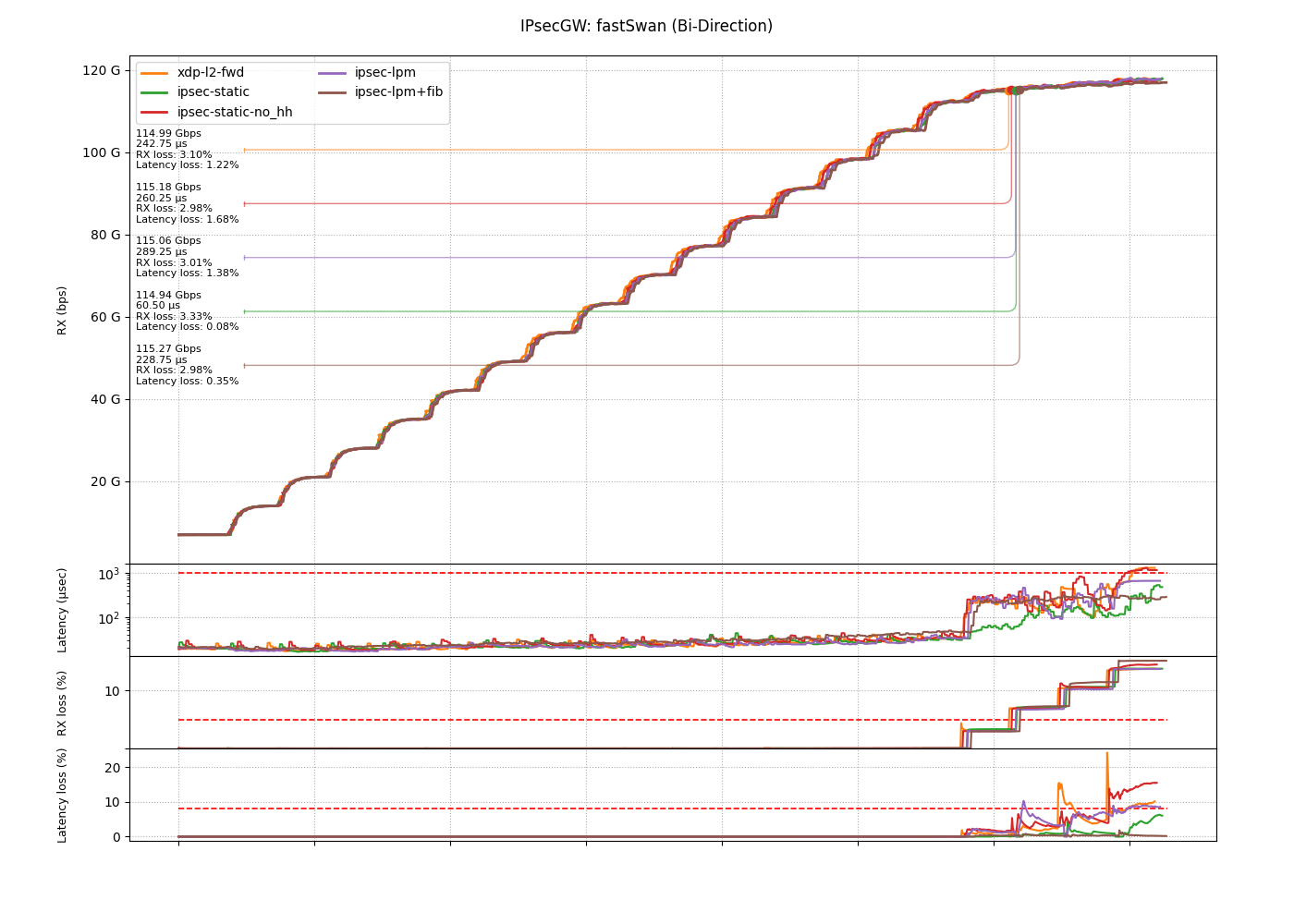

For bi-directional test results, TRex displays the cumulative RX for both ports on the same graph. Curve convergence at peak perf is due to mutual cumulative perf impact on {RX; TX} of CX7 IPsec offload and XDP forwarding. It provides the maximum perf for the use-case where P1 is used for unciphered traffic and P0 for ciphered traffic, and XDP is used to forward/route traffic between interfaces.
Test 2 - fastSwan mod Clients

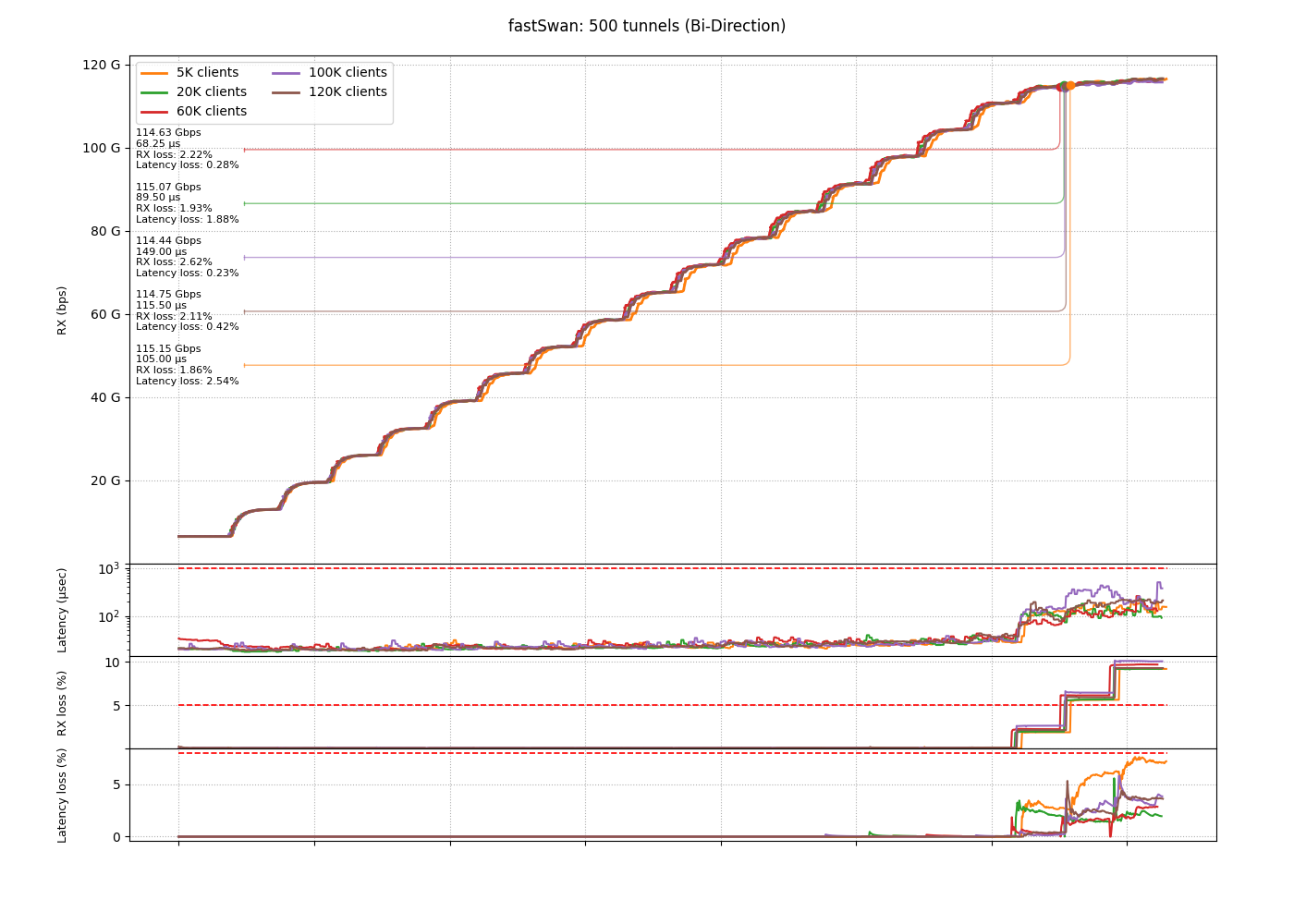

The purpose of this test is to evaluate impact of number of clients per IPsec Tunnels for Bi-Directional use-case. This is the same as Test 1 but modulating number of clients over 500 IPsec Tunnels.
Again : Packet Offload mode
LAB Topology
Same as Test 1.
Configurations
Same as Test 1.

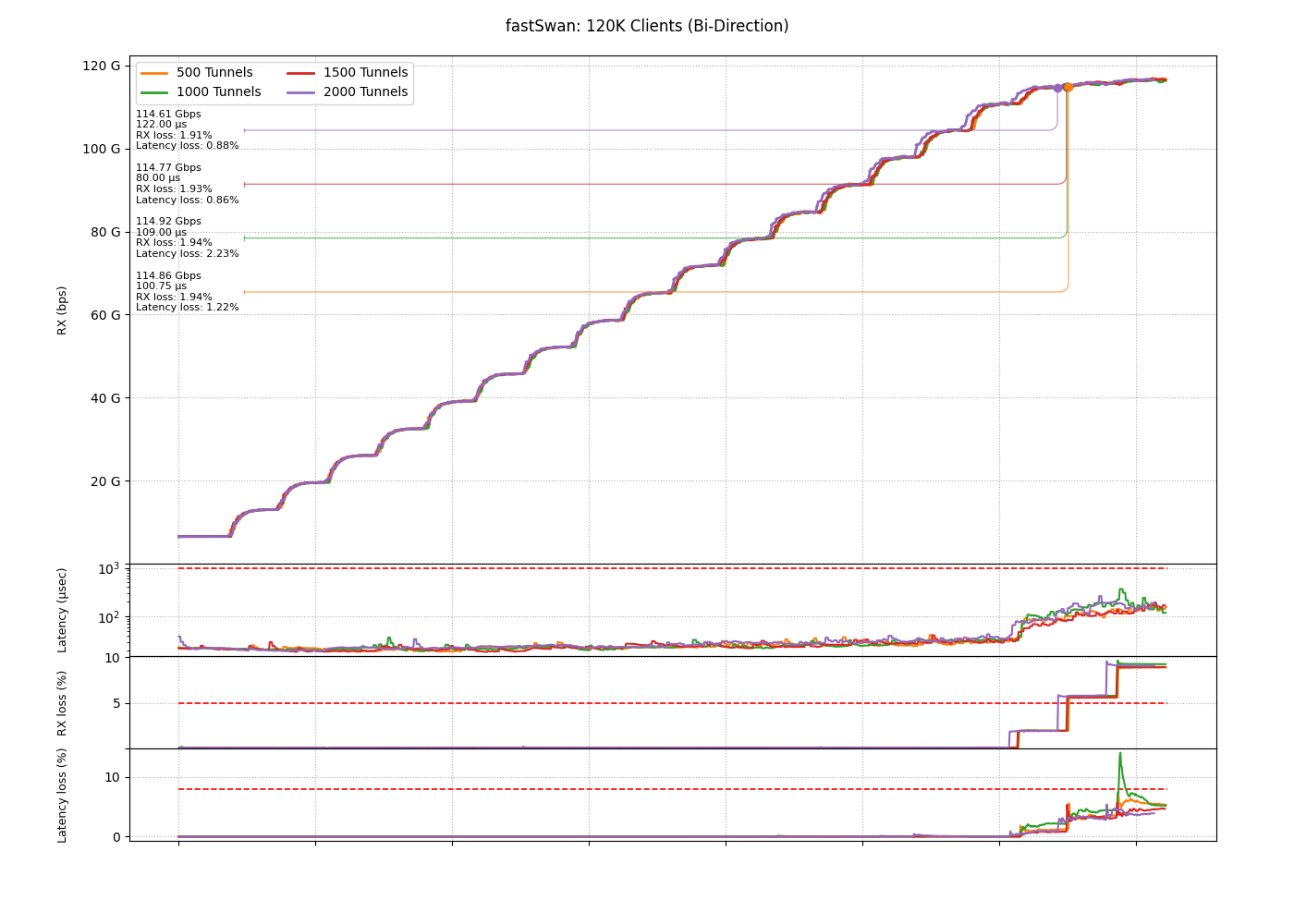

Results
Discussion
Nothing more to say except that the impacts are negligible.
Test 3 - fastSwan mod Tunnels
The purpose of this test is to evaluate impact of number of IPsec Tunnels for Bi-Directional use-case. This is the same as Test 2 but dsitributing 120K Clients over a modulating number of IPsec Tunnels.
Again : Packet Offload mode
LAB Topology
Same as Test 2.
Configurations
Same as Test 2.
Results
Discussion
Nothing more to say except that the impacts are negligible.
Test 4 - fastSwan Routed
The purpose of this test is to evaluate global performances of the solution over a network architecture as found on large scale Telco networks. We will use both ports of BF3 for IPsec traffic. Each ports will define a VLAN interface for unciphered traffic and native interface for IPsec ciphered traffic. As for Test3 TRex will distribute 120K Clients over a modulating number of IPsec Tunnels.
Again : Packet Offload mode
LAB Topology
We are using IPSEC-GW in a Routed Network. Please refer to documentation on Routed Network for split down architecture and details.

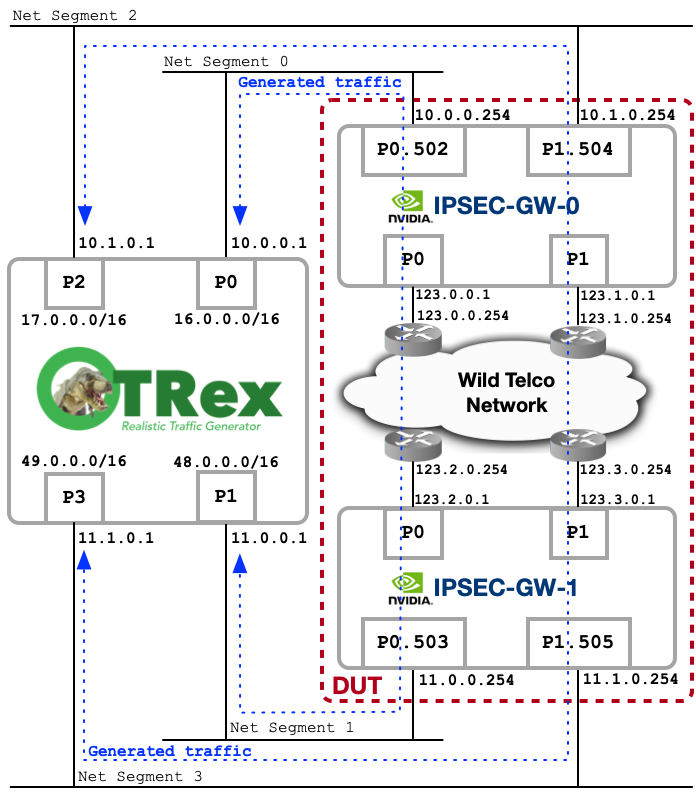

Logical Topology :
Physical Topology :
Configurations
On each IPSEC-GW a script will generate routing and strongSwan configurations :
#!/bin/bash
TNLCOUNT=<TNLCNT>
#
# Networking setup
#
sysctl -w net.ipv4.ip_forward=1
ip link set p0 up
ip link add link p0 name p0.502 type vlan id 502
ip link set dev p0.502 up
ip a a 123.0.0.1/16 dev p0
ip a a 10.0.0.254/24 dev p0.502
ip link set p1 up
ip link add link p1 name p1.504 type vlan id 504
ip link set dev p1.504 up
ip a a 123.1.0.1/16 dev p1
ip a a 10.1.0.254/24 dev p1.504
ip r a 123.2.0.0/16 via 123.0.0.254
ip r a 123.3.0.0/16 via 123.1.0.254
ip r a 16.0.0.0/8 via 10.0.0.1
ip r a 17.0.0.0/8 via 10.1.0.1
ip r a 48.0.0.0/8 via 123.0.0.254
ip r a 49.0.0.0/8 via 123.1.0.254
ip link set dev dummy0 up
ip a a 10.10.10.10/32 dev dummy0
ip r a default via 10.10.10.10
#
# strongSwan initiate
#
ipsec start
sleep 1
swanctl --load-all
for i in `seq 1 $TNLCOUNT`; do
echo $i;
swanctl -i --child tnl-0-$i > /dev/null;
swanctl -i --child tnl-1-$i > /dev/null;
done
fastswan
#!/bin/bash
TNLCOUNT=<TNLCNT>
#
# Networking setup
#
sysctl -w net.ipv4.ip_forward=1
ip link set p0 up
ip link add link p0 name p0.503 type vlan id 503
ip link set dev p0.503 up
for i in `seq 1 $TNLCOUNT`;
do
ip a a 123.2.$((i / 255 + 1)).$((i % 255 + 1))/16 dev p0
# First Packet on Nexus9000 is dropped, force MAC learning
ping -q -w 1 -I 123.2.$((i / 255 + 1)).$((i % 255 + 1)) 123.2.0.254 > /dev/null &
done
ip a a 11.0.0.254/24 dev p0.503
ip link set p1 up
ip link add link p1 name p1.505 type vlan id 505
ip link set dev p1.505 up
for i in `seq 1 $TNLCOUNT`;
do
ip a a 123.3.$((i / 255 + 1)).$((i % 255 + 1))/16 dev p1
# First Packet on Nexus9000 is dropped, force MAC learning
ping -q -w 1 -I 123.3.$((i / 255 + 1)).$((i % 255 + 1)) 123.3.0.254 > /dev/null &
done
ip a a 11.1.0.254/24 dev p1.505
ip a a 123.2.0.1/16 dev p0
ip a a 123.3.0.1/16 dev p1
ip r a 123.0.0.0/16 via 123.2.0.254
ip r a 123.1.0.0/16 via 123.3.0.254
ip r a 48.0.0.0/8 via 11.0.0.1
ip r a 49.0.0.0/8 via 11.1.0.1
ip r a 16.0.0.0/8 via 123.0.0.254
ip r a 17.0.0.0/8 via 123.1.0.254
ip link set dev dummy0 up
ip a a 10.10.10.10/32 dev dummy0
ip r a default via 10.10.10.10
#
# strongSwan initiate
#
ipsec start
sleep 1
swanctl --load-all
fastswan
#!/bin/bash
if [ "$#" -ne 1 ]; then
echo " "$(basename $0)" <tnlcount>"
echo " tnlcount: NUMBER "
echo " "
echo " Generate strongSwan configuration files."
exit
fi
TNLCOUNT=$1
SUBNET_CONNECTED="123"
SUBNET_ROUTED_LOCAL="16"
SUBNET_ROUTED_REMOTE="48"
BITS="24"
OUTPUT="s0-0-$TNLCOUNT.conf"
if [ $TNLCOUNT -gt $((255 * 255)) ]; then
echo "Maximum tunnel supported : $((255 * 255))"
exit
fi
cat << HEADER > "$OUTPUT"
connections {
HEADER
for i in `seq 1 $TNLCOUNT`
do
cat << TNL >> "$OUTPUT"
tunnel-0-$i {
local_addrs = ${SUBNET_CONNECTED}.0.0.1
remote_addrs = ${SUBNET_CONNECTED}.2.$((i / 255 + 1)).$((i % 255 + 1))
local {
auth = psk
id = ipsecgw-0
}
remote {
auth = psk
id = ipsecgw-$i
}
children {
tnl-0-$i {
local_ts = ${SUBNET_ROUTED_LOCAL}.0.0.0/8
remote_ts = ${SUBNET_ROUTED_REMOTE}.$(((i-1) / 255)).$(((i-1) % 255)).0/${BITS}
esp_proposals = aes256gcm128-esn
mode = tunnel
policies_fwd_out = yes
hw_offload = packet
}
}
version = 2
mobike = no
reauth_time = 0
proposals = aes256-sha256-modp2048
}
TNL
done
cat << FOOTER >> "$OUTPUT"
}
secrets {
FOOTER
for i in `seq 1 $TNLCOUNT`
do
cat << SECRET >> "$OUTPUT"
ike-tnl-0-$i {
id-1 = ipsecgw-0
id-2 = ipsecgw-$i
secret = 'TopSecret'
}
SECRET
done
echo "}" >> "$OUTPUT"
#!/bin/bash
if [ "$#" -ne 1 ]; then
echo " "$(basename $0)" <tnlcount>"
echo " tnlcount: NUMBER "
echo " "
echo " Generate strongSwan configuration files."
exit
fi
TNLCOUNT=$1
SUBNET_CONNECTED="123"
SUBNET_ROUTED_LOCAL="17"
SUBNET_ROUTED_REMOTE="49"
BITS="24"
OUTPUT="s0-1-$TNLCOUNT.conf"
if [ $TNLCOUNT -gt $((255 * 255)) ]; then
echo "Maximum tunnel supported : $((255 * 255))"
exit
fi
cat << HEADER > "$OUTPUT"
connections {
HEADER
for i in `seq 1 $TNLCOUNT`
do
cat << TNL >> "$OUTPUT"
tunnel-1-$i {
local_addrs = ${SUBNET_CONNECTED}.1.0.1
remote_addrs = ${SUBNET_CONNECTED}.3.$((i / 255 + 1)).$((i % 255 + 1))
local {
auth = psk
id = ipsecgw-0
}
remote {
auth = psk
id = ipsecgw-$i
}
children {
tnl-1-$i {
local_ts = ${SUBNET_ROUTED_LOCAL}.0.0.0/8
remote_ts = ${SUBNET_ROUTED_REMOTE}.$(((i-1) / 255)).$(((i-1) % 255)).0/${BITS}
esp_proposals = aes256gcm128-esn
mode = tunnel
policies_fwd_out = yes
hw_offload = packet
}
}
version = 2
mobike = no
reauth_time = 0
proposals = aes256-sha256-modp2048
}
TNL
done
cat << FOOTER >> "$OUTPUT"
}
secrets {
FOOTER
for i in `seq 1 $TNLCOUNT`
do
cat << SECRET >> "$OUTPUT"
ike-tnl-1-$i {
id-1 = ipsecgw-0
id-2 = ipsecgw-$i
secret = 'TopSecret'
}
SECRET
done
echo "}" >> "$OUTPUT"
#!/bin/bash
#
# 120K Clients considered : adapt BITS to distribute load across
# 24 : 254
# 25 : 126
# ....
if [ "$#" -ne 1 ]; then
echo " "$(basename $0)" <tnlcount>"
echo " tnlcount: NUMBER "
echo " "
echo " Generate strongSwan configuration files."
exit
fi
TNLCOUNT=$1
SUBNET_CONNECTED="123"
SUBNET_ROUTED_LOCAL="48"
SUBNET_ROUTED_REMOTE="16"
BITS="24"
OUTPUT="s1-0-$TNLCOUNT.conf"
if [ $TNLCOUNT -gt $((255 * 255)) ]; then
echo "Maximum tunnel supported : $((255 * 255))"
exit
fi
cat << HEADER > "$OUTPUT"
connections {
HEADER
for i in `seq 1 $TNLCOUNT`
do
cat << TNL >> "$OUTPUT"
tunnel-0-$i {
remote_addrs = ${SUBNET_CONNECTED}.0.0.1
local_addrs = ${SUBNET_CONNECTED}.2.$((i / 255 + 1)).$((i % 255 + 1))
local {
auth = psk
id = ipsecgw-$i
}
remote {
auth = psk
id = ipsecgw-0
}
children {
tnl-0-$i {
local_ts = ${SUBNET_ROUTED_LOCAL}.$(((i-1) / 255)).$(((i-1) % 255)).0/${BITS}
remote_ts = ${SUBNET_ROUTED_REMOTE}.0.0.0/8
esp_proposals = aes256gcm128-esn
mode = tunnel
policies_fwd_out = yes
hw_offload = packet
}
}
version = 2
mobike = no
reauth_time = 0
proposals = aes256-sha256-modp2048
}
TNL
done
cat << FOOTER >> "$OUTPUT"
}
secrets {
FOOTER
for i in `seq 1 $TNLCOUNT`
do
cat << SECRET >> "$OUTPUT"
ike-tnl-0-$i {
id-1 = ipsecgw-$i
id-2 = ipsecgw-0
secret = 'TopSecret'
}
SECRET
done
echo "}" >> "$OUTPUT"
#!/bin/bash
#
# 120K Clients considered : adapt BITS to distribute load across
# 24 : 254
# 25 : 126
# ....
if [ "$#" -ne 1 ]; then
echo " "$(basename $0)" <tnlcount>"
echo " tnlcount: NUMBER "
echo " "
echo " Generate strongSwan configuration files."
exit
fi
TNLCOUNT=$1
SUBNET_CONNECTED="123"
SUBNET_ROUTED_LOCAL="49"
SUBNET_ROUTED_REMOTE="17"
BITS="24"
OUTPUT="s1-1-$TNLCOUNT.conf"
if [ $TNLCOUNT -gt $((255 * 255)) ]; then
echo "Maximum tunnel supported : $((255 * 255))"
exit
fi
cat << HEADER > "$OUTPUT"
connections {
HEADER
for i in `seq 1 $TNLCOUNT`
do
cat << TNL >> "$OUTPUT"
tunnel-1-$i {
remote_addrs = ${SUBNET_CONNECTED}.1.0.1
local_addrs = ${SUBNET_CONNECTED}.3.$((i / 255 + 1)).$((i % 255 + 1))
local {
auth = psk
id = ipsecgw-$i
}
remote {
auth = psk
id = ipsecgw-0
}
children {
tnl-1-$i {
local_ts = ${SUBNET_ROUTED_LOCAL}.$(((i-1) / 255)).$(((i-1) % 255)).0/${BITS}
remote_ts = ${SUBNET_ROUTED_REMOTE}.0.0.0/8
esp_proposals = aes256gcm128-esn
mode = tunnel
policies_fwd_out = yes
hw_offload = packet
}
}
version = 2
mobike = no
reauth_time = 0
proposals = aes256-sha256-modp2048
}
TNL
done
cat << FOOTER >> "$OUTPUT"
}
secrets {
FOOTER
for i in `seq 1 $TNLCOUNT`
do
cat << SECRET >> "$OUTPUT"
ike-tnl-1-$i {
id-1 = ipsecgw-$i
id-2 = ipsecgw-0
secret = 'TopSecret'
}
SECRET
done
echo "}" >> "$OUTPUT"
In order to emulate Wild Telco Network, we can use the following configuration on a Cisco equipment. This configuration will define a VRF to introduce Layer3 routing :
vlan 502-513
vlan 502
name trex_trusted_0
vlan 503
name trex_trusted_1
vlan 504
name trex_trusted_2
vlan 505
name trex_trusted_3
vlan 510
name trex_untrusted_p0_bf0
vlan 511
name trex_untrusted_p1_bf0
vlan 512
name trex_untrusted_p0_bf1
vlan 513
name trex_untrusted_p1_bf1
interface Vlan510
no shutdown
vrf member trex_unencrypted
no ip redirects
ip address 123.0.0.254/16
interface Vlan511
no shutdown
vrf member trex_unencrypted
no ip redirects
ip address 123.1.0.254/16
interface Vlan512
no shutdown
vrf member trex_unencrypted
no ip redirects
ip address 123.2.0.254/16
interface Vlan513
no shutdown
vrf member trex_unencrypted
ip address 123.3.0.254/16
vrf context trex_unencrypted
ip route 16.0.0.0/8 123.0.0.1
ip route 17.0.0.0/8 123.1.0.1
ip route 48.0.0.0/8 123.2.0.1
ip route 49.0.0.0/8 123.3.0.1
interface Ethernet1/25
description IPSEC-GW-1-P1
switchport
switchport mode trunk
switchport trunk native vlan 511
switchport trunk allowed vlan 504,511
no shutdown
interface Ethernet1/26
description IPSEC-GW-1-P0
switchport
switchport mode trunk
switchport trunk native vlan 510
switchport trunk allowed vlan 502,510
no shutdown
interface Ethernet1/27
description IPSEC-GW-2-P1
switchport
switchport mode trunk
switchport trunk native vlan 513
switchport trunk allowed vlan 505,513
no shutdown
interface Ethernet1/28
description IPSEC-GW-2-P0
switchport
switchport mode trunk
switchport trunk native vlan 512
switchport trunk allowed vlan 503,512
no shutdown
Results
Discussion
Number of tunnels induces latency, but if your target for BF3 platform is around 2K tunnels then performances are very good and way better than any other competing solution.
As mentioned before, we MUST take into account that the designed DUT is the worst case scenario, where HW limits are hit twice on the data path. In a live network, the performance is expected to be even more impressive since the HW limits are hit once and CX7 can be run on a stronger CPU box to push even more. But, as always, the economic equation MUST drive the choice.
