IPsecGw Sample

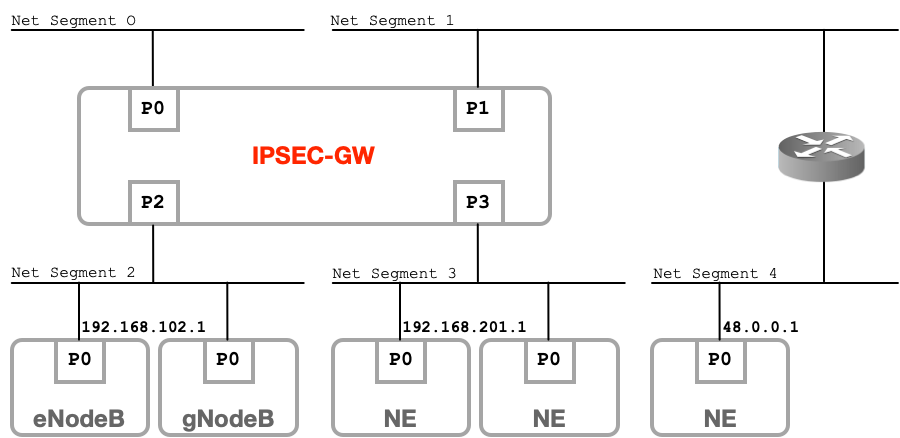

Consider the following topology where 192.168.201.1 wants to reach 192.168.102.1:

IPsecGW connects multiple network segments. On the left, we see a production topology as run in live operator networks. On the right is a LAB topology used to validate IPSEC-GW operations. In the LAB topology, the IPSEC-GW configuration and operations are the same as in the production topology. The LAB topology can be used as part of a non-regression & validation process and run on a single server hosting multiple NICs (ConnectX-7 here in our example) where each NIC is a VFIO in a dedicated VM.

LAB Topology: network configuration

To simulate a full routing path within Simulated-NE, we create a bridge interface, make the CX interface part of the bridge and create a VETH interface where the first peer (veth0) is part of the same bridge and the second peer (veth1) is linked to a network namespace that is part of the same network as the remote IPSEC-GW.

ip link set dev p0 up
ip address add 192.168.101.11/24 dev p0
ip link add dummy0 type dummy
ip address add 192.168.201.1/24 dev dummy0
ip link set dummy0 up
ip link add br-network type bridge
ip link add dev veth0 type veth peer name veth1
ip link set veth0 up
ip link set p1 master br-network
ip link set veth0 master br-network
ip netns add nns
ip link set veth1 netns nns
ip netns exec nns ip link set dev lo up
ip -n nns address add 192.168.102.1/24 dev veth1
ip -n nns link set veth1 up
ip address add 192.168.102.100/24 dev br-network
ip netns exec nns ip route add default via 192.168.102.100
ip netns exec nns ip route add 192.168.201.0/24 via 192.168.102.10
ip link set dev br-network up
ip link set dev p1 up

sysctl -w net.ipv4.ip_forward=1
sysctl -w net.ipv6.conf.all.forwarding=1
ip link set dev p0 up
ip address add 192.168.101.10/24 dev p0
ip link set dev p1 up
ip address add 192.168.102.10/24 dev p1

LAB Topology: strongSwan configuration

The IPSEC-GW node is the only node configured in hw_offload mode. Simulated-NE is configured without offload enabled to inspect ingress and egress ESP traffic. For all strongSwan operations, please refer to the strongSwan documentation, but to start SA, simply run :

$ sudo swanctl --load-all
$ sudo swanctl -i --child gw


connections {
  B-TO-B {
    local_addrs  = 192.168.101.10
    remote_addrs = 192.168.101.11

    local {
        auth = psk
        id = ipsec-gw
    }
    remote {
        auth = psk
        id = ipsec-enodeb
    }

    children {
      gw {
        local_ts = 192.168.102.0/24
        remote_ts = 192.168.201.0/24
        esp_proposals = aes128gcm128-x25519-esn
        mode = tunnel
        policies_fwd_out = yes
        hw_offload = packet
      }
    }
    version = 2
    mobike = no
    reauth_time = 0
    proposals = aes128-sha256-x25519
  }
}

secrets {
  ike-GW {
    id-1 = ipsec-gw
    id-2 = ipsec-enodeb
    secret = 'TopSecret'
  }
}

connections {
  B-TO-B {
    local_addrs  = 192.168.101.11
    remote_addrs = 192.168.101.10

    local {
        auth = psk
        id = ipsec-enodeb
    }
    remote {
        auth = psk
        id = ipsec-gw
    }

    children {
      gw {
        local_ts = 192.168.201.0/24
        remote_ts = 192.168.102.0/24
        esp_proposals = aes128gcm128-x25519-esn
        mode = tunnel
        policies_fwd_out = yes
      }
    }
    version = 2
    mobike = no
    reauth_time = 0
    proposals = aes128-sha256-x25519
  }
}

secrets {
  ike-GW {
    id-1 = ipsec-enodeb
    id-2 = ipsec-gw
    secret = 'TopSecret'
  }
}

IPSEC-GW: fastSwan configuration

$ cat /etc/fastswan/fastswan.conf
!
! fastSwan configuration saved from vty
!   2025/01/08 12:10:50
!
hostname fastSwan
!
bpf
 xdp-xfrm p0-ingress object-file /etc/fastswan/xfrm_offload.bpf interface p0
 xdp-xfrm p1-ingress object-file /etc/fastswan/xfrm_offload.bpf interface p1
!
load-existing-xfrm-policy
!
line vty
 no login
 listen 127.0.0.1 1664
!

Testing

To validate IPSEC tunnel Packet Offload operations, we send icmp-request from Simulated-NE to local the namespace IP Address. This simulates a global routing path via remote IPSEC-GW. To ensure that the traffic is properly encrypted in an ESP envelope on the Simulated-NE side, we run xdpdump at p0 ingress of Simulated-NE. The following results MUST be observed:

ICMP-Request from Simulated-NE
simulated-ne:$ ping -I 192.168.201.1 192.168.102.1
PING 192.168.102.1 (192.168.102.1) from 192.168.201.1 : 56(84) bytes of data.
64 bytes from 192.168.102.1: icmp_seq=1 ttl=63 time=0.819 ms
64 bytes from 192.168.102.1: icmp_seq=2 ttl=63 time=0.715 ms
64 bytes from 192.168.102.1: icmp_seq=3 ttl=63 time=0.612 ms
^C
--- 192.168.102.1 ping statistics ---
3 packets transmitted, 3 received, 0% packet loss, time 2070ms
rtt min/avg/max/mdev = 0.612/0.715/0.819/0.084 ms

ipsec-gw:$ telnet localhost 1664
Trying 127.0.0.1...
Connected to localhost.
Escape character is '^]'.

Welcome to fastSwan VTY

fastSwan> show xdp xfrm offload policy
  src 192.168.201.0/24 dst 192.168.102.0/24 dir in dev p0
  src 192.168.102.0/24 dst 192.168.201.0/24 dir out dev p0
fastSwan> show xdp xfrm offload statistics
 p0:
   rx_pkts:3 rx_bytes:294
   tx_pkts:3 tx_bytes:294
 p1:
   rx_pkts:3 rx_bytes:294
   tx_pkts:3 tx_bytes:294
fastSwan>

ipsec-gw:$ sudo ip xfrm policy
src 192.168.102.0/24 dst 192.168.201.0/24
    dir fwd priority 375424 ptype main
src 192.168.102.0/24 dst 192.168.201.0/24
    dir out priority 375423 ptype main
    tmpl src 192.168.101.10 dst 192.168.101.11
        proto esp spi 0xc2a00805 reqid 1 mode tunnel
    crypto offload parameters: dev p0 mode packet
src 192.168.201.0/24 dst 192.168.102.0/24
    dir fwd priority 375423 ptype main
    tmpl src 192.168.101.11 dst 192.168.101.10
        proto esp reqid 1 mode tunnel
src 192.168.201.0/24 dst 192.168.102.0/24
    dir in priority 375423 ptype main
    tmpl src 192.168.101.11 dst 192.168.101.10
        proto esp reqid 1 mode tunnel
    crypto offload parameters: dev p0 mode packet
tcpdump on Simulated-NE
simulated-ne:$ sudo tcpdump -ni p0 esp or icmp
tcpdump: verbose output suppressed, use -v[v]... for full protocol decode
listening on p0, link-type EN10MB (Ethernet), snapshot length 262144 bytes
15:27:00.332414 IP 192.168.101.11 > 192.168.101.10: ESP(spi=0xcf6ed559,seq=0xa), length 120
15:27:00.333186 IP 192.168.101.10 > 192.168.101.11: ESP(spi=0xc7b7b547,seq=0xa), length 120
15:27:00.333186 IP 192.168.102.1 > 192.168.201.1: ICMP echo reply, id 4, seq 1, length 64
15:27:01.378227 IP 192.168.101.11 > 192.168.101.10: ESP(spi=0xcf6ed559,seq=0xb), length 120
15:27:01.378910 IP 192.168.101.10 > 192.168.101.11: ESP(spi=0xc7b7b547,seq=0xb), length 120
15:27:01.378910 IP 192.168.102.1 > 192.168.201.1: ICMP echo reply, id 4, seq 2, length 64
15:27:02.402236 IP 192.168.101.11 > 192.168.101.10: ESP(spi=0xcf6ed559,seq=0xc), length 120
15:27:02.402804 IP 192.168.101.10 > 192.168.101.11: ESP(spi=0xc7b7b547,seq=0xc), length 120
15:27:02.402804 IP 192.168.102.1 > 192.168.201.1: ICMP echo reply, id 4, seq 3, length 64

simulated-ne:$ sudo xdpdump -i p0 --rx-capture=entry,exit -w - | tcpdump -n -r - esp or icmp
listening on p0, ingress XDP program ID 24 func xdp_dummy, capture mode entry/exit, capture
size 262144 bytes
reading from file -, link-type EN10MB (Ethernet), snapshot length 262144
15:26:59.978424 IP 192.168.101.10 > 192.168.101.11: ESP(spi=0xc7b7b547,seq=0xa), length 120
15:26:59.978445 IP 192.168.101.10 > 192.168.101.11: ESP(spi=0xc7b7b547,seq=0xa), length 120
15:27:01.024170 IP 192.168.101.10 > 192.168.101.11: ESP(spi=0xc7b7b547,seq=0xb), length 120
15:27:01.024191 IP 192.168.101.10 > 192.168.101.11: ESP(spi=0xc7b7b547,seq=0xb), length 120
15:27:02.048090 IP 192.168.101.10 > 192.168.101.11: ESP(spi=0xc7b7b547,seq=0xc), length 120
15:27:02.048108 IP 192.168.101.10 > 192.168.101.11: ESP(spi=0xc7b7b547,seq=0xc), length 120

xdp_dummy.c source code :

/*
 *  ip link set dev p0 xdp obj xdp_dummy.bpf sec xdp
 */
#define KBUILD_MODNAME "xdp_dummy"
#include <uapi/linux/bpf.h>
#include <bpf_helpers.h>

SEC("xdp")
int xdp_dummy(struct xdp_md *ctx)
{
    return XDP_PASS;
}

char _license[] SEC("license") = "GPL";
